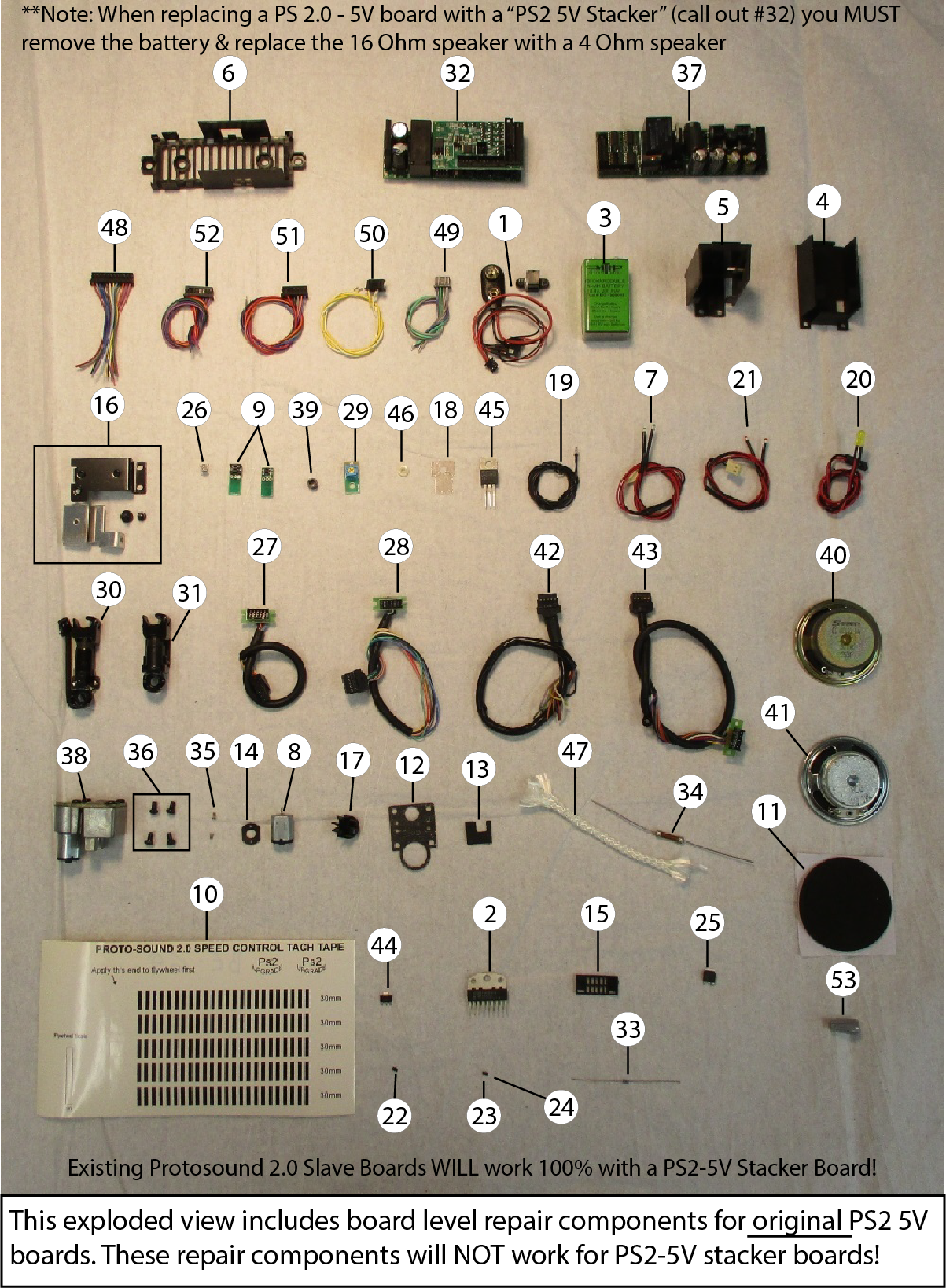

BC0000205 |
BATTERY LEAD / W/CHARGING PORT / 195mm LONG / PS2 5V |
1
|
$8.00/ea
|
|
|
|
PROGRAMMING FEE |
FEE TO PROGRAM MTH PS3 CIRCUIT BOARD (NON-REFUNDABLE) SEE PHOTO FOR INSTRUCTIONS |
1
|
$25.00/ea
|
|
|
|
BB0000056 |
AUDIO AMP / TDA7056B / PROTOSOUND 2.0 / 5V PROCESSOR BOARD (Out of Stock) |
2
|
$8.00/ea
|
|
|
|
BG4000005 |
BATTERY / 8.4V / 150mAh RECHARGEABLE NiMH / PROTOSOUND 2.0 5V & PROTOSOUND 1 |
3
|
$14.00/ea
|
|
|
|
IH0000074 |
BRACKET / 9V BATTERY / PLASTIC / FLAT MOUNT / ALT# IH-0000116 |
4
|
$3.00/ea
|
|
|
|
IH0000042 |
BRACKET / 9V BATTERY / PLASTIC / VERTICAL MOUNT |
5
|
$4.00/ea
|
|
|
|
IH0000474 |
BRACKET / PLASTIC / O & G GAUGE / PS 3/2 STACKER BOARD (Out of Stock) |
6
|
$4.00/ea
|
|
|
|
CE0000005 |
CLASS LAMP LEDS / GREEN / 2 LEDS / ASSORTED WIRE LENGTHS / MICRO MINIATURE / PS2 |
7
|
$7.00/ea
|
|
|
|
BE0000041 |
DC MOTOR / MABUCHI / SMOKE UNIT IMPELLER / O GAUGE |
8
|
$7.50/ea
|
|
|
|
AG0000047 |
FLYWHEEL TACH READER / 1.5mm SPACER / PS 2.0 / MABUCHI W/ 27mm FLYWHEEL |
9
|
$7.00/ea
|
|
|
|
AG0000041 |
FLYWHEEL TACH READER / 2.2mm SPACER / PS 2.0 / PREMIER STEAM 30mm FLYWHEEL |
9
|
$7.00/ea
|
|
|
|
AG0000033 |
FLYWHEEL TACH READER / NO SPACER / PS 2.0 / MABUCHI W/ 30mm FLYWHEEL / ALT# BC-2200087 |
9
|
$9.00/ea
|
|
|
|
AG0000058 |
FLYWHEEL TACH READER / NO SPACER / W/HOLE IN PCB / (TINPLATE) |
9
|
$7.00/ea
|
|
|
|
BE0000073 |
FLYWHEEL TACH TAPE / (STRIPES) / 1.77mm WIDE / FOR 27mm DIAM. FLYWHEELS |
10
|
$2.00/ea
|
|
|
|
BE0000069 |
FLYWHEEL TACH TAPE / (STRIPES) / 1.96mm WIDE / FOR 30mm DIAM. FLYWHEELS |
10
|
$2.00/ea
|
|
|
|
BE0000151 |
FLYWHEEL TACH TAPE / FOR 33.7mm, 31.8mm, 30mm & 27mm DIAMETER FLYWHEELS / PS 3 UPGRADE KIT / PS2 ALSO |
10
|
$2.00/ea
|
|
|
|
IB0000029 |
GASKET / FOAM / SPEAKER / 1ea 40mm 45mm 50mm |
11
|
$5.00/ea
|
|
|
|
IB0000006 |
GASKET / SMOKE UNIT / O GAUGE / 25mm W x 36mm LONG (Out of Stock) |
12
|
$2.00/ea
|
|
|
|
IB0000024 |
GASKET / SMOKE UNIT HOUSING HALVES / O GAUGE |
13
|
$1.00/ea
|
|
|
|
IB0000008 |
GASKET / SMOKE UNIT IMPELLER MOTOR / SOME O GAUGE ONLY |
14
|
$1.00/ea
|
|
|
|
AI0000032 |
HEAT SHIELD / PROTOSOUND 2 5VOLT / AMPLIFIER / PLASTIC / 10.2mm x 22.7mm |
15
|
$2.00/ea
|
|
|
|
IC0000026 |
HEAT SINK / PS 3 & PS 3/2 STACKER / ALUMINUM / KIT |
16
|
$8.00/ea
|
|
|
|
AI0000019 |
IMPELLER / SMOKE UNIT / O GAUGE / BLACK PLASTIC |
17
|
$2.00/ea
|
|
|
|
CA0000022 |
LAMP / 6V / 4 LAMPS / 3mm D x 6.6mm L / GRAIN OF WHEAT / CAN USE CC0000014 (Out of Stock) |
17
|
$6.00/ea
|
|
|
|
ID0000024 |
INSULATOR / MICA / TO-220 VOLTAGE REGULATOR / 0.01mm THICK |
18
|
$0.25/ea
|
|
|
|
CA0000111 |
LAMP / 6V / 2.3mm D x 6.6mm L / ASSORTED LENGTH WIRES / DOUBLE LAMP (2) / GRAIN OF RICE |
19
|
$7.50/ea
|
|
|
|
CA0000079 |
LAMP / 6V / 3mm D x 6.6mm L / ASSORTED LENGTH WIRES / DOUBLE LAMP (2) / GRAIN OF WHEAT |
19
|
$4.00/ea
|
|
|
|
CA0000074 |
LAMP / 6V / 60mA / 3mm D x 6.3mm L / ASSORTED LENGTH WIRES / SINGLE LAMP / GRAIN OF WHEAT |
19
|
$4.00/ea
|
|
|
|
CE2104002 |
LED / YELLOW / 5mm DIAM / W/2-POS PLUG / PS3 (Out of Stock) |
20
|
$7.00/ea
|
|
|
|
CC0000062 |
MARKER LAMP LEDS / RED / 2 LEDS / MICRO MINIATURE / INCLUDES 8-POSITION 3V HARNESS / FOR PS2 & 3 STEAM UPGRADE KITS |
21
|
$9.00/ea
|
|
|
|
BB0000041 |
MOSFET / PS 2.0 5V & 3V BOARD / SMT / LIGHT & SMOKE FAN / FDN5630 (Q3, Q4, Q5, Q6, Q12, Q17, Q18, Q20) |
22
|
$3.20/ea
|
|
|
|
BB0000039 |
MOSFET / PS 2.0 5V & 3V BOARD / SMT / LAMP OR LED CONTROL / FMMT4401 (PS 2.0 5V: Q203, Q301, Q305) (PS 2.0 3V: Q14, Q15, Q16 |
23
|
$3.20/ea
|
|
|
|
BB0000038 |
MOSFET / PS 2.0 5V BOARD / SMT / LAMP CONTROL / BSH101 / USE BB0000041 (Out of Stock) |
24
|
$3.20/ea
|
|
|
|
BB0000052 |
MOSFET / SLAVE / FOR SLAVE BOARD AC-0000011 / SMT |
25
|
$3.00/ea
|
|
|
|
AG0000078 |
OPTICAL IR SENSOR / FOR TACH BOARD / PS 2 APPLICATIONS ONLY / ALSO USED IN PS 3 G GAUGE STEAM |
26
|
$5.00/ea
|
|
|
|
BC0000246 |
PCB / TETHER CONNECTOR / 10-POSITION / DIESEL TRUCK MOUNT (Out of Stock) |
27
|
$10.00/ea
|
|
|
|
BC2100167 |
PCB / TETHER CONNECTOR / 10-POSITION / 225mm L / W/10-POSITION FEMALE CONNECTOR / PREMIER GAS TURBINE (Out of Stock) |
28
|
$12.00/ea
|
|
|
|
BI0000040 |
POTENTIOMETER / 10K OHMS / PCB MOUNTED (REQUIRES ID0000071) / PS2 AND 3 / VOLUME AND SMOKE CONTROL / LOCOSOUND VOLUME |
29
|
$5.00/ea
|
|
|
|
DD0000032 |
PROTO-COUPLER / LONG / 51mm OVERALL / PS 2 & PS 3 |
30
|
$12.00/ea
|
|
|
|
DD0000033 |
PROTO-COUPLER / SHORT / 44mm OVERALL / PS 2 & PS 3 |
31
|
$12.00/ea
|
|
|
|
AE10000355V |
PS 3/2 STACKER / W/BRACKET / O GAUGE / UNPROGRAMMED / HIROSE CONNECTORS / PS 2-5V ONLY / REPLACES ALL PS 2.-5V BOARDS (Out of Stock) |
32
|
$180.00/ea
|
|
|
|
BB0000037 |
RESISTOR / 10K OHM 1/8W / PROTOSOUND 2 5V BOARD |
33
|
$0.25/ea
|
|
|
|
AI0000018 |
RESISTOR / 16 OHM 2W / SMOKE UNIT HEATING ELEMENT / O GAUGE |
34
|
$2.50/ea
|
|
|
|
IA0000120 |
SCREW / CHSHD / M1.6 x 0.35 x 2.7mm L / SMOKE MOTOR O GAUGE |
35
|
$0.25/ea
|
|
|
|
IA0000003 |
SCREW / PANHD / SELF-CUTTING / 3mm D x 5.5mm L / USED TO MOUNT MANY TRUCK SIDE FRAMES |
36
|
$0.25/ea
|
|
|
|
AC0000011 |
SLAVE BOARD / PROTOSOUND 2 / 3V & 5V / HIROSE CONNECTORS (ANALOG) |
37
|
$70.00/ea
|
|
|
|
AA1100008 |
SMOKE UNIT / PS 2 & 3 / 0mm POST HEIGHT / 17.1mm W x 30.8mm L / BRASS CUP 4.93mm H / SMOKING WHISTLE (Out of Stock) |
38
|
$40.00/ea
|
|
|
|
AA2100002 |
SMOKE UNIT / PS 2 & 3 / 0mm POST HEIGHT / 17.1mm W x 30.8mm L / W/O BRASS CUP / SMOKING WHISTLE W/VERTICLE MOTOR / SAME AS AA1100009 |
38
|
$40.00/ea
|
|
|
|
AA0000033 |
SMOKE UNIT / PS 2 & 3 / 18.75mm POST HEIGHT / 25mm W x 36mm L / BRASS CUP 3.9mm H (Out of Stock) |
38
|
$50.00/ea
|
|
|
|
AA0000091 |
SMOKE UNIT / PS 2 & 3 / 19mm POST HEIGHT / 25mm W x 36mm L / FUNNEL 9.25mm H / W/LAMP SOCKET BRACKET (Out of Stock) |
38
|
$50.00/ea
|
|
|
|
AA0000037 |
SMOKE UNIT / PS 2 & 3 / 24.1mm POST HEIGHT / 25mm W x 36mm L / BRASS CUP 4.65mm H |
38
|
$50.00/ea
|
|
|
|
AA0000081 |
SMOKE UNIT / PS 2 & 3 / 26.0mm POST HEIGHT / 25mm x 36mm / BRASS CUP 4.05mm H / CAN USE AA2100000 & AA0000102 (Out of Stock) |
38
|
$50.00/ea
|
|
|
|
AA0000086 |
SMOKE UNIT / PS 2 & 3 / 26.15mm POST HEIGHT / 25mm W x 36mm L / BLACK STACK 15.6mm H (Out of Stock) |
38
|
$50.00/ea
|
|
|
|
AA0000059 |
SMOKE UNIT / PS 2 & 3 / 26.15mm POST HEIGHT / 25mm W x 36mm L / BRASS CUP 4.96mm H |
38
|
$50.00/ea
|
|
|
|
AA0000087 |
SMOKE UNIT / PS 2 & 3 / 26.1mm POST HEIGHT / 25mm W x 36mm L / BRASS CUP 3.25mm H (Out of Stock) |
38
|
$50.00/ea
|
|
|
|
AA2100015 |
SMOKE UNIT / PS 2 & 3 / 26.1mm POST HEIGHT / 25mm W x 36mm L / BRASS CUP 4.9mm H / PREMIER SHARKNOSE |
38
|
$50.00/ea
|
|
|
|
AA0000067 |
SMOKE UNIT / PS 2 & 3 / 26.25mm POST HEIGHT / 25mm W x 36mm L / BRASS CUP 13.45mm H |
38
|
$50.00/ea
|
|
|
|
AA0000090 |
SMOKE UNIT / PS 2 & 3 / 26.25mm POST HEIGHT / 25mm W x 36mm L / BRASS STACK 12.1mm H (Out of Stock) |
38
|
$50.00/ea
|
|
|
|
AA0000085 |
SMOKE UNIT / PS 2 & 3 / 26.25mm POST HEIGHT / 25mm W x 36mm L / STACK 16.6mm H / CENTIPEDE |
38
|
$50.00/ea
|
|
|
|
AA2200001 |
SMOKE UNIT / PS 2 & 3 / 26mm POST HEIGHT / 25mm W x 35.9mm L / USE AA2100000 |
38
|
$50.00/ea
|
|
|
|
AA2100000 |
SMOKE UNIT / PS 2 & 3 / 26mm POST HEIGHT / 25mm W x 36mm L / BRASS CUP THREADS / BRASS CUP SOLD SEPARATELY / ALT# AA-2100022 |
38
|
$50.00/ea
|
|
|
|
AA0000012 |
SMOKE UNIT / PS 2 & 3 / 7.5mm POST HEIGHT / 25mm W x 36mm L / BLACK STACK 10.7mm H (Out of Stock) |
38
|
$50.00/ea
|
|
|
|
AA0000095 |
SMOKE UNIT / PS 2 & 3 / 7.5mm POST HEIGHT / 25mm W x 36mm L / BRASS CUP 3.7mm H / USE AA0000070 (Out of Stock) |
38
|
$50.00/ea
|
|
|
|
AA0000057 |
SMOKE UNIT / PS 2 & 3 / 7.5mm POST HEIGHT / 25mm W x 36mm L / BRASS CUP 4.6mm H |
38
|
$50.00/ea
|
|
|
|
AA0000052 |
SMOKE UNIT / PS 2 & 3 / 7.5mm POST HEIGHT / 25mm W x 36mm L / BRASS CUP 9.5mm H (Out of Stock) |
38
|
$50.00/ea
|
|
|
|
AA0000070 |
SMOKE UNIT / PS 2 & 3 / 7.5mm POST HEIGHT / 25mm W x 36mm L / BRASS CUP THREAD / BRASS CUP SOLD SEPARATELY |
38
|
$50.00/ea
|
|
|
|
AA0000114 |
SMOKE UNIT / PS 2 & 3 / 7.6mm POST HEIGHT / 25mm W x 36mm L / FUNNEL 8.8mm H / PREMIER FEF NORTHERN (Out of Stock) |
38
|
$50.00/ea
|
|
|
|
AA0000093 |
SMOKE UNIT / PS 2 & 3 / 8.25mm POST HEIGHT / 18.8mm W x 63.6mm L / BRASS CUP 5.3mm H |
38
|
$50.00/ea
|
|
|
|
ID0000071 |
SPACER / PLASTIC / 5.8mm O.D. x 3.1mm I.D. x 4.1mm TALL / PS 3 UPGRADE KIT |
39
|
$1.00/ea
|
|
|
|
BF0000013 |
SPEAKER / 16 OHM 0.7W / 45mm DIAM x 9mm H / UNISON |
40
|
$10.00/ea
|
|
|
|
BF0000031 |
SPEAKER / 16 OHM 2W / 45mm DIAMETER / STAR / NR-045-A1Z04 (Out of Stock) |
40
|
$10.00/ea
|
|
|
|
BF0000033 |
SPEAKER / 16 OHM 3W / 50mm DIAM. / REPLACES STAR AND ASAHI (Out of Stock) |
40
|
$18.00/ea
|
|
|
|
BF0000021 |
SPEAKER / 16 OHM 5W / 45mm DIAM / STAR FR045A1421 / OBSOLETE (Out of Stock) |
40
|
$10.00/ea
|
|
|
|
BF0000039 |
SPEAKER / 4 OHM 3W / 45mm DIAM x 17mm H / STAR NR045A3227 (Out of Stock) |
41
|
$10.00/ea
|
|
|
|
BF0000034 |
SPEAKER / 4 OHM 3W / 50mm DIAM x 17.5mm H / STAR NR0500902, HSD, OR ASAHI (Out of Stock) |
41
|
$15.00/ea
|
|
|
|
BC2100035 |
TETHER / DIESEL / 10-POSITION / 205mm L / FLAT CONNECTOR TO SLAVE PCB (Out of Stock) |
42
|
$10.00/ea
|
|
|
|
BC2100033 |
TETHER / DIESEL / 10-POSITION / 205mm L / TRUCK (Out of Stock) |
43
|
$10.00/ea
|
|
|
|
BC2000000 |
TETHER / DIESEL / 10-POSITION / 420mm L / FLAT CONNECTOR / UNIVERSAL PS 2 |
43
|
$10.00/ea
|
|
|
|
BB0000040 |
TRANSISTOR / IRLL2705 / PS 2-5V (Q311) / PS2-3V (Q13) |
44
|
$3.20/ea
|
|
|
|
AG0000032 |
VOLTAGE REGULATOR / LM2937ET / TO-220 CASE |
45
|
$6.00/ea
|
|
|
|
ID0000025 |
WASHER / SHOULDER / PLASTIC / FOR INSULATING VOLTAGE REGULATORS / ALTERNATE ID0000033 |
46
|
$0.25/ea
|
|
|
|
AA0000001 |
WICK / ALL MTH SMOKE UNITS / FIBERGLASS / 0.25in DIAM x 3.5in L |
47
|
$2.00/ea
|
|
|
|
BC1700006 |
WIRE HARNESS / 12-POSITION / HIROSE / COUPLERS, SPEAKER, POT / UNIVERSAL PS 2-5V BOARDS & SLAVE (Out of Stock) |
48
|
$4.00/ea
|
|
|
|
BC1700002 |
WIRE HARNESS / 4-POSITION / HIROSE / SMOKE / UNIVERSAL PS 2-5V BOARDS & SLAVE |
49
|
$2.00/ea
|
|
|
|
BC1700003 |
WIRE HARNESS / 5-POSITION W/2 WIRES / HIROSE / MOTORS / STEAM PS 2-5V BOARDS & SLAVE |
50
|
$2.00/ea
|
|
|
|
BC1700004 |
WIRE HARNESS / 7-POSITION / HIROSE / POWER & TACH / UNIVERSAL PS 2-5V BOARDS & SLAVE (Out of Stock) |
51
|
$2.50/ea
|
|
|
|
BC1700005 |
WIRE HARNESS / 8-POSITION / HIROSE / LIGHTING / UNIVERSAL PS 2-5V BOARDS & SLAVE (Out of Stock) |
52
|
$2.50/ea
|
|
|
|
BI4500003 |
WIRE NUT / YELLOW OR GRAY |
53
|
$0.25/ea
|
|
