IH0000474 |
BRACKET / PLASTIC / O & G GAUGE / PS 3/2 STACKER BOARD |
1
|
$4.00/ea
|
|
|
|
PROGRAMMING FEE |
FEE TO PROGRAM MTH PS3 CIRCUIT BOARD (NON-REFUNDABLE) SEE PHOTO FOR INSTRUCTIONS |
1
|
$25.00/ea
|
|
|
|
IH0000475 |
BRACKET / TACH READER / PLASTIC / FOR 27mm FLYWHEELS / PS 3 ONLY / MABUCHI MOTORS / PS 3 UPGRADE KIT |
2
|
$3.00/ea
|
|
|
|
IH0000478 |
BRACKET / TACH READER / PLASTIC / FOR 30mm FLYWHEELS / PS 3 ONLY / MABUCHI MOTORS / PS 3 UPGRADE KIT |
3
|
$3.00/ea
|
|
|
|
IH0000154 |
BRACKET / TACH READER / PS 2 / PLASTIC / PITTMAN MOTOR / 2 MOUNTING HOLES |
4
|
$3.00/ea
|
|
|
|
CE0000005 |
CLASS LAMP LEDS / GREEN / 2 LEDS / ASSORTED WIRE LENGTHS / MICRO MINIATURE |
5
|
$7.00/ea
|
|
|
|
BE0000041 |
DC MOTOR / MABUCHI / SMOKE UNIT IMPELLER / O GAUGE |
6
|
$7.50/ea
|
|
|
|
AG0000047 |
FLYWHEEL TACH READER / 1.5mm SPACER / PS 2.0 / MABUCHI W/ 27mm FLYWHEEL |
7
|
$7.00/ea
|
|
|
|
AG0000041 |
FLYWHEEL TACH READER / 2.2mm SPACER / PS 2.0 / PREMIER STEAM 30mm FLYWHEEL |
7
|
$7.00/ea
|
|
|
|
AG0000033 |
FLYWHEEL TACH READER / NO SPACER / PS 2.0 / MABUCHI W/ 30mm FLYWHEEL / ALT# BC-2200087 |
7
|
$9.00/ea
|
|
|
|
AG0000058 |
FLYWHEEL TACH READER / NO SPACER / W/HOLE IN PCB / (TINPLATE) |
7
|
$7.00/ea
|
|
|
|
BE0000073 |
FLYWHEEL TACH TAPE / (STRIPES) / 1.77mm WIDE / FOR 27mm DIAM. FLYWHEELS |
8
|
$2.00/ea
|
|
|
|
BE0000069 |
FLYWHEEL TACH TAPE / (STRIPES) / 1.96mm WIDE / FOR 30mm DIAM. FLYWHEELS |
8
|
$2.00/ea
|
|
|
|
BE0000151 |
FLYWHEEL TACH TAPE / FOR 33.7mm, 31.8mm, 30mm & 27mm DIAMETER FLYWHEELS / PS 3 UPGRADE KIT / PS2 ALSO |
8
|
$2.00/ea
|
|
|
|
IB0000021 |
GASKET / SMOKE UNIT / PS 2 & 3 / (FOR AA0000093) |
9
|
$2.00/ea
|
|
|
|
IB0000008 |
GASKET / SMOKE UNIT IMPELLER MOTOR |
10
|
$1.00/ea
|
|
|
|
IH0000010 |
GROMMET / RUBBER / 1 LAMP / 5mm O.D. x 2.3mm I.D. x 5mm THICK |
11
|
$0.25/ea
|
|
|
|
IC0000026 |
HEAT SINK / PS 3 & PS 3/2 STACKER / ALUMINUM / KIT |
12
|
$8.00/ea
|
|
|
|
AI0000019 |
IMPELLER / SMOKE UNIT / O GAUGE / BLACK PLASTIC |
13
|
$2.00/ea
|
|
|
|
AI0000044 |
INDUCTOR / 16.8uH / BLACK OR COPPER / FOR PS2 & PS3 STEAM UPGRADE KITS |
14
|
$3.00/ea
|
|
|
|
ID0000123 |
INSULATOR / PROTO-COUPLER / 0.25mm THICK |
15
|
$1.50/ea
|
|
|
|
CA0000074 |
LAMP / 6V / 60mA / 3mm D x 6.3mm L / ASSORTED LENGTH WIRES / SINGLE LAMP / GRAIN OF WHEAT |
16
|
$4.00/ea
|
|
|
|
CC0000062 |
MARKER LAMP LEDS / RED / 2 LEDS / MICRO MINIATURE / INCLUDES 8-POSITION 3V HARNESS / FOR PS2 & 3 STEAM UPGRADE KITS |
17
|
$9.00/ea
|
|
|
|
TPMS00075 |
NUT / 6-32 / PS 3 UPGRADE KIT |
18
|
$0.50/ea
|
|
|
|
IC0000006 |
NUT / MOUNTS PANTOGRAPH / VARIOUS PREMIER AND RAILKING ELECTRICS / PS1 AND PS2 |
19
|
$0.50/ea
|
|
|
|
AG0000078 |
OPTICAL IR SENSOR / FOR TACH BOARD / PS 2 APPLICATIONS ONLY |
20
|
$5.00/ea
|
|
|
|
AG0000039 |
PCB / TETHER CONNECTOR / 10-POSITION / RAILKING & PREMIER STEAM LOCOMOTIVES |
21
|
$10.00/ea
|
|
|
|
BI0000040 |
POTENTIOMETER / 10K OHMS / PCB MOUNTED (REQUIRES ID0000071) / PS2 AND 3 / VOLUME AND SMOKE CONTROL /LOCOSOUND VOLUME |
22
|
$5.00/ea
|
|
|
|
DD0000032 |
PROTO-COUPLER / LONG / 51mm OVERALL / PS 2 & PS 3 |
23
|
$12.00/ea
|
|
|
|
DD0000033 |
PROTO-COUPLER / SHORT / 44mm OVERALL / PS 2 & PS 3 |
24
|
$12.00/ea
|
|
|
|
AE10353V004 |
OPEN PART NUMBER (Out of Stock) |
25
|
$180.00/ea
|
|
|
|
AE10353V009 |
PS 3/2 STACKER / O GAUGE / CHYAO SHIUNN CONNECTORS / PS 2-3V ONLY / RAILKING COORS LIGHT SILVER BULLET TRAIN / WHEN OUT WILL NOT BE RESTOCKED (Out of Stock) |
25
|
$180.00/ea
|
|
|
|
AE10353V010 |
PS 3/2 STACKER / O GAUGE / CHYAO SHIUNN CONNECTORS / PS 2-3V ONLY / STEAM TURBINE / WHEN OUT WILL NOT BE RESTOCKED USE AE10000353V (Out of Stock) |
25
|
$180.00/ea
|
|
|
|
AE10353V003 |
PS 3/2 STACKER / O GAUGE / CHYAO SHIUNN CONNECTORS / PS 2-3V ONLY / STEAM W/STANDARD SMOKE / WHEN OUT WILL NOT BE RESTOCKED USE AE10000353V (Out of Stock) |
25
|
$180.00/ea
|
|
|
|
AE10000353V |
PS 3/2 STACKER / O GAUGE / UNPROGRAMMED / CHYAO SHIUNN CONNECTORS / REPLACES ALL PS 2-3V BOARDS |
25
|
$180.00/ea
|
|
|
|
AI0000018 |
RESISTOR / 16 OHM 2W / SMOKE UNIT HEATING ELEMENT / O GAUGE |
26
|
$2.50/ea
|
|
|
|
IA0000120 |
SCREW / CHSHD / 2.7mm x 1.6mm x 0.35mm thd |
27
|
$0.25/ea
|
|
|
|
IA0000058 |
SCREW / CHSHD / 3.5mm x 2mm x 0.4mm thd |
28
|
$0.25/ea
|
|
|
|
IA0000375 |
SCREW / FLTHD / 8-32 x 0.16in / BLACK |
29
|
$0.25/ea
|
|
|
|
IA0000466 |
SCREW / FLTHD / 1/4in L x 6-32thd / BLACK (Out of Stock) |
30
|
$0.25/ea
|
|
|
|
IA0000003 |
SCREW / PANHD / SELF-CUTTING / 3mm x 5.5mm / USED TO MOUNT MANY TRUCK SIDE FRAMES |
31
|
$0.25/ea
|
|
|
|
IA0000027 |
SCREW / PANHD / SELF-CUTTING / 6mm x 3.4mm / PS 3 UPGRADE KIT |
32
|
$0.25/ea
|
|
|
|
IA0000050 |
SCREW / PANHD / SELF-CUTTING / 8mm x 3.5mm |
33
|
$0.25/ea
|
|
|
|
IH0000464 |
SHRINK TUBE / 2.2mm O.D. / 12in LONG / PS 3 UPGRADE KIT |
34
|
$2.00/ea
|
|
|
|
AA1100008 |
SMOKE UNIT / PS 2 & 3 / 0mm POST HEIGHT / 17.1mm W x 30.8mm L / BRASS CUP 4.93mm H / SMOKING WHISTLE (Out of Stock) |
35
|
$40.00/ea
|
|
|
|
AA2100002 |
SMOKE UNIT / PS 2 & 3 / 0mm POST HEIGHT / 17.1mm W x 30.8mm L / W/O BRASS CUP / SMOKING WHISTLE W/VERTICLE MOTOR / SAME AS AA1100009 |
35
|
$40.00/ea
|
|
|
|
AA0000033 |
SMOKE UNIT / PS 2 & 3 / 18.75mm POST HEIGHT / 25mm W x 36mm L / BRASS CUP 3.9mm H (Out of Stock) |
35
|
$50.00/ea
|
|
|
|
AA0000091 |
SMOKE UNIT / PS 2 & 3 / 19mm POST HEIGHT / 25mm W x 36mm L / FUNNEL 9.25mm H / W/LAMP SOCKET BRACKET |
35
|
$50.00/ea
|
|
|
|
AA0000037 |
SMOKE UNIT / PS 2 & 3 / 24.1mm POST HEIGHT / 25mm W x 36mm L / BRASS CUP 4.65mm H |
35
|
$50.00/ea
|
|
|
|
AA0000086 |
SMOKE UNIT / PS 2 & 3 / 26.15mm POST HEIGHT / 25mm W x 36mm L / BLACK STACK 15.6mm H (Out of Stock) |
35
|
$50.00/ea
|
|
|
|
AA0000059 |
SMOKE UNIT / PS 2 & 3 / 26.15mm POST HEIGHT / 25mm W x 36mm L / BRASS CUP 4.96mm H |
35
|
$50.00/ea
|
|
|
|
AA0000087 |
SMOKE UNIT / PS 2 & 3 / 26.1mm POST HEIGHT / 25mm W x 36mm L / BRASS CUP 3.25mm H (Out of Stock) |
35
|
$50.00/ea
|
|
|
|
AA2100015 |
SMOKE UNIT / PS 2 & 3 / 26.1mm POST HEIGHT / 25mm W x 36mm L / BRASS CUP 4.9mm H / PREMIER SHARKNOSE |
35
|
$50.00/ea
|
|
|
|
AA0000067 |
SMOKE UNIT / PS 2 & 3 / 26.25mm POST HEIGHT / 25mm W x 36mm L / BRASS CUP 13.45mm H |
35
|
$50.00/ea
|
|
|
|
AA0000090 |
SMOKE UNIT / PS 2 & 3 / 26.25mm POST HEIGHT / 25mm W x 36mm L / BRASS STACK 12.1mm H (Out of Stock) |
35
|
$50.00/ea
|
|
|
|
AA0000085 |
SMOKE UNIT / PS 2 & 3 / 26.25mm POST HEIGHT / 25mm W x 36mm L / STACK 16.6mm H / CENTIPEDE |
35
|
$50.00/ea
|
|
|
|
AA0000081 |
SMOKE UNIT / PS 2 & 3 / 26.2mm POST HEIGHT / 25mm x 36mm / BRASS CUP 4.05mm H |
35
|
$50.00/ea
|
|
|
|
AA2200001 |
SMOKE UNIT / PS 2 & 3 / 26mm POST HEIGHT / 25mm W x 35.9mm L / USE AA2100000 (Out of Stock) |
35
|
$50.00/ea
|
|
|
|
AA2100000 |
SMOKE UNIT / PS 2 & 3 / 26mm POST HEIGHT / 25mm W x 36mm L / BRASS CUP THREADS / BRASS CUP SOLD SEPARATELY / ALT# AA-2100022 |
35
|
$50.00/ea
|
|
|
|
AA0000012 |
SMOKE UNIT / PS 2 & 3 / 7.5mm POST HEIGHT / 25mm W x 36mm L / BLACK STACK 10.7mm H (Out of Stock) |
35
|
$50.00/ea
|
|
|
|
AA0000095 |
SMOKE UNIT / PS 2 & 3 / 7.5mm POST HEIGHT / 25mm W x 36mm L / BRASS CUP 3.7mm H / USE AA0000070 |
35
|
$50.00/ea
|
|
|
|
AA0000057 |
SMOKE UNIT / PS 2 & 3 / 7.5mm POST HEIGHT / 25mm W x 36mm L / BRASS CUP 4.6mm H |
35
|
$50.00/ea
|
|
|
|
AA0000052 |
SMOKE UNIT / PS 2 & 3 / 7.5mm POST HEIGHT / 25mm W x 36mm L / BRASS CUP 9.5mm H (Out of Stock) |
35
|
$50.00/ea
|
|
|
|
AA0000070 |
SMOKE UNIT / PS 2 & 3 / 7.5mm POST HEIGHT / 25mm W x 36mm L / BRASS CUP THREAD / BRASS CUP SOLD SEPARATELY |
35
|
$50.00/ea
|
|
|
|
AA0000114 |
SMOKE UNIT / PS 2 & 3 / 7.6mm POST HEIGHT / 25mm W x 36mm L / FUNNEL 8.8mm H / PREMIER FEF NORTHERN |
35
|
$50.00/ea
|
|
|
|
AA0000093 |
SMOKE UNIT / PS 2 & 3 / 8.25mm POST HEIGHT / 18.8mm W x 63.6mm L / BRASS CUP 5.3mm H |
35
|
$50.00/ea
|
|
|
|
BD0000065 |
SPACER / FIBER / FLAT / 13.4mm W x 31.4mm L x 0.9mm THICK / TETHER PCB / PROTOSOUND 3 STEAM UPGRADE KIT |
36
|
$1.00/ea
|
|
|
|
ID0000071 |
SPACER / PLASTIC / 5.8mm O.D. x 3.1mm I.D. x 4.1mm TALL / PS 3 UPGRADE KIT |
37
|
$1.00/ea
|
|
|
|
BF0000052 |
SPEAKER / 4 OHM 1.5W / 28mm DIAM / VECO 28CR04FB1 (Out of Stock) |
38
|
$10.00/ea
|
|
|
|
BF0000053 |
SPEAKER / 4 OHM 2W / W/ BLACK PLASTIC HOUSING / 40mm DIAM x 28.5mm H / PUI AS0400P0R (Out of Stock) |
38
|
$15.00/ea
|
|
|
|
BF0000048 |
SPEAKER / 4 OHM 2W / W/ BLACK PLASTIC HOUSING 40mm DIAM x 28.5mm H / STAR NB0431 (Out of Stock) |
38
|
$10.00/ea
|
|
|
|
BF0000041 |
SPEAKER / 4 OHM 3W / 40mm DIAM x 18mm H / ASAHI |
38
|
$10.00/ea
|
|
|
|
BF0000039 |
SPEAKER / 4 OHM 3W / 45mm DIAM x 17mm H / STAR NR045A3227 |
38
|
$10.00/ea
|
|
|
|
BF0000034 |
SPEAKER / 4 OHM 3W / 50mm DIAM x 17.5mm H / STAR NR0500902, HSD, OR ASAHI / CAN USE BF0000043 (Out of Stock) |
38
|
$15.00/ea
|
|
|
|
BF0000050 |
SPEAKER / 4 OHM 3W / W/GRAY PLASTIC HOUSING / 40mm DIAM x 28.5mm H (Out of Stock) |
38
|
$15.00/ea
|
|
|
|
BF0000047 |
SPEAKER / 4 OHM 4W / 40mm DIAM x 17mm H / VECO 40AS042 / XDEC 15NL07 |
38
|
$10.00/ea
|
|
|
|
BF0000043 |
SPEAKER / 4 OHM 4W / 50mm DIAM x 18mm H / VECO 50AS04 OR XDEC 15ND18 / ALT # BF-1102002000 |
38
|
$10.00/ea
|
|
|
|
BB0000010 |
SWITCH / DPDT / LARGE / COUPLER & POLARITY / USE BB-0000001 (Out of Stock) |
39
|
$5.00/ea
|
|
|
|
BC1000002 |
TETHER / STEAM / 10-POSITION / 90 DEG CONN. / UNIVERSAL PS 2 , LOCOSOUND AND PS 3 STEAM UPGRADE KIT |
39
|
$12.00/ea
|
|
|
|
BC1000003 |
TETHER CONNECTOR / STEAM / 10-POSITION / UNIVERSAL STEAM UPGRADE W/TACH READER & PLUGS / PROTOSOUND 2 & 3 STEAM UPGRADE KIT / ENGINE HARNESS (Out of Stock) |
41
|
$18.00/ea
|
|
|
|
AA0000001 |
WICK / ALL MTH SMOKE UNITS / FIBERGLASS / 0.25in DIAM x 3.5in L |
42
|
$2.00/ea
|
|
|
|
BC1700018 |
WIRE HARNESS / 8-POSITION / CHYAO SHIUNN / DITCH LIGHTS & MARKER LIGHT / UNIVERSAL PROTOSOUND 2 3V (Out of Stock) |
43
|
$6.00/ea
|
|
|
|
BC2100120 |
WIRE HARNESS / PICKUP & GROUND / OBSOLETE USE BC2000007 / WIRES W/RING TERMINALS / RED & BLACK WIRES / ASSORTED WIRE LENGTHS (Out of Stock) |
44
|
$2.50/ea
|
|
|
|
BC1000005 |
TETHER / STEAM / 10-POSITION / UNIVERSAL TENDER HARNESS / PROTOSOUND 2 AND 3 STEAM UPGRADE KIT (Out of Stock) |
45
|
$15.00/ea
|
|
|
|
IH0000466 |
WIRE MANAGEMENT COIL / 12in LENGTH / PS 3 UPGRADE KIT (Out of Stock) |
46
|
$2.00/ea
|
|
|
|
IH0000465 |
WIRE MANAGEMENT COIL / 6in LENGTH / PS 3 UPGRADE KIT |
46
|
$1.00/ea
|
|
|
|
BI4500003 |
WIRE NUT / YELLOW OR GRAY |
47
|
$0.25/ea
|
|
|
|
IH0000295 |
WIRE STRAP / PLASTIC / ZIP-TIE / 5.5in L (Out of Stock) |
48
|
$0.25/ea
|
|
|
|
50-1911 |

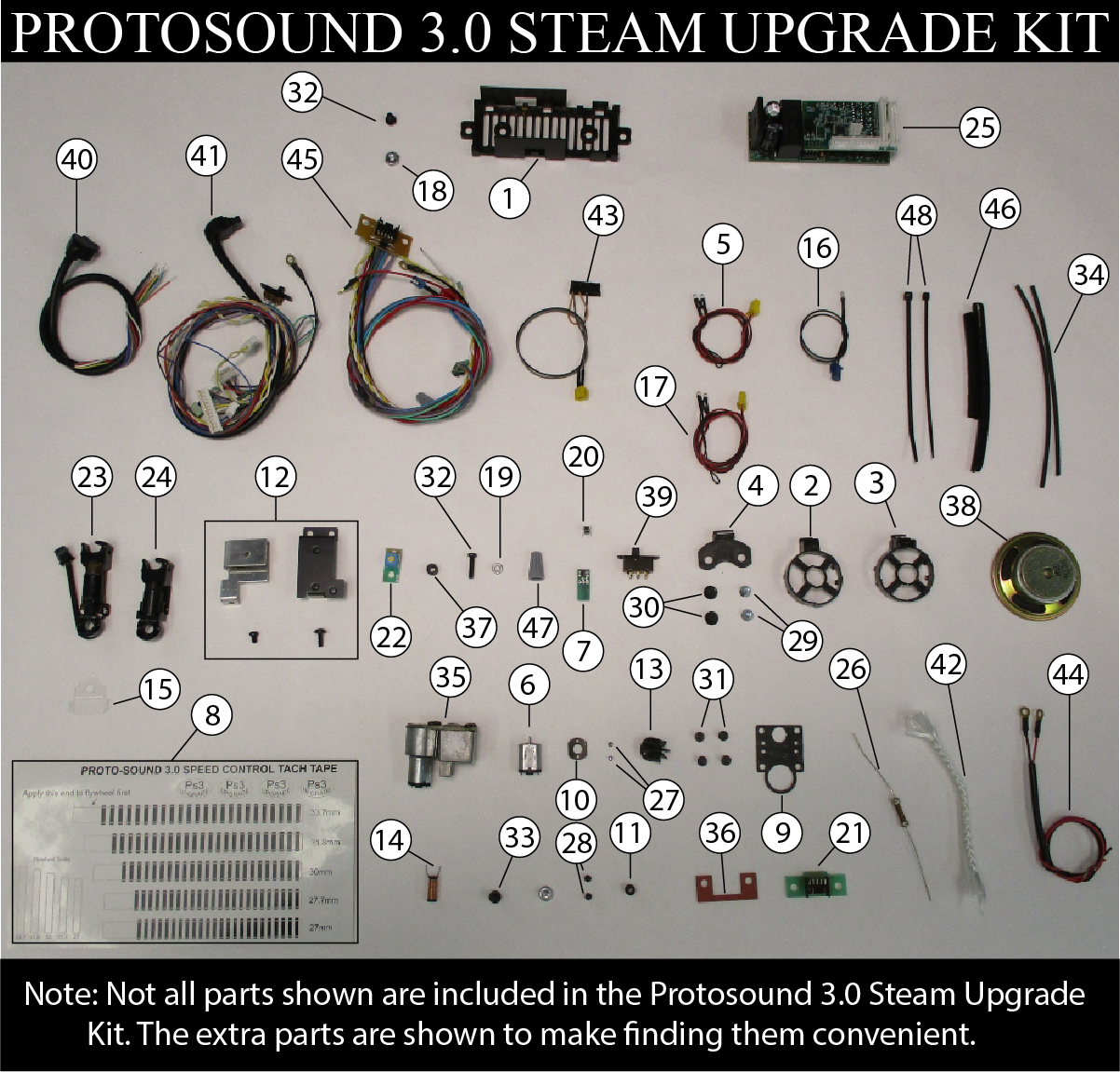

PROTOSOUND 3.0 STEAM LOCOMOTIVE UPGRADE KIT |
|
$200.00/ea
|
|
